Enhanced TDS
Identification & Functionality
- Chemical Family
- Chemical Name
- CASE Ingredients Functions
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
Applications & Uses
- Compatible Polymers & Resins
Properties
- Physical Form
- Specifications
Value Units Test Method / Conditions Color 0 - 100 APHA PR-0638 Color 0 - 1 Gardner PR-0639 Specific Gravity 0.88 - 0.92 - PR-0625 Viscosity (at 25°C) 7 - 12 CP TM 18 Density (at 25°C) 7.5 Ib/gal - Hydrolyzable Chlorides Content 0 - 0.1 % TM 09 Moisture Content 0 - 0.1 % PR-0648 Residual Epichlorohydrin Content 10 ppm TM 73 Equivalent Weight (WPE) 285 - 310 wt. per epoxide TM 82
Regulatory & Compliance
Technical Details & Test Data
- Performance Properties

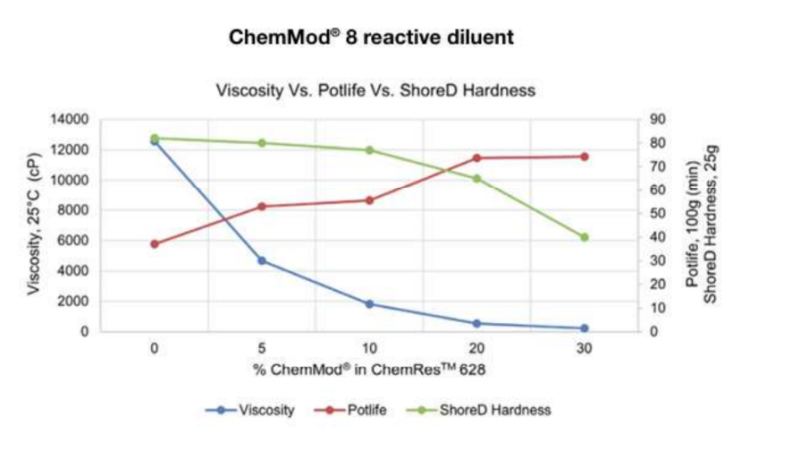

% ChemMod® 8 in ChemRes T™ 628 (WPE = 186 ) Viscosity, cP. 25°C / 77°F Potlife, min (100g) 75°F/50%Rel.Humidity Shore D Hardness, 24hr (25g) 75°F/50% Rel. Humidity
0% 12,560 37 82 5% 4,664 53 80 10% 1,828 55.5 77 20% 542 73.75 65 30% 218 74.25 40 - Viscosity vs Potlife vs Shore D Hardness
- Compatibility Information
ChemMod® 8 reactive diluent is compatible with most curing agents, epoxy resins, and other components of epoxy systems, however, compatibility testing prior to large-scale application is recommended to ensure safe use.
Packaging & Availability
- Packaging Type
- Packaging Information
ChemMod® 8 product is available in drums and totes.
Storage & Handling
- Shelf Life
- 12 Months
- Shelf Life Information
- Keep away from extreme heat, cold, and moisture. Please refer to the product's safety data sheet for shipping, safety, and handling.
- Note: It is recommended that opened drums use a desiccant tube in the bleed bung and are covered with a nitrogen blanket if the drum will be stored as a partial for later use.
- The recommended shelf life is 12 months in unopened containers maintained at a proper storage temperature of 25°C.
.
